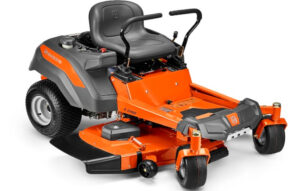

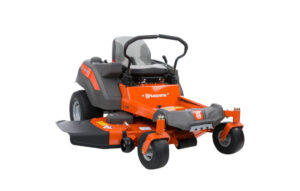

Performance and style hit the grass running with the all new Z200 Series Zero Turn Mowers. Cutting edge design, proven performance and new innovative features combine to make lawn maintenance an event instead of a chore.

ENGINE

Motor/engine manufacturer: Kohler
Engine name: 7,000 Series
Power output: 26 hp
Cylinder displacement: 747 cm³
Cylinders: 2
Engine cooling: Air
Air filter type Auto-type: Paper
Power/fuel type: Gasoline
Engine lubrication type: Full pressure with oil filter
Oil filter: Yes
Fuel tank volume: (with reserve) 3.5 gal (US)
Fuel tank location: Side (Single)

CUTTING DECK

Cutting width: 48in
Cutting deck type: ClearCut™ – Fabricated
Cutting methods: Collect/Mulch/Side discharge
Cutting deck material: Steel
Deck thickness: 10 gauge
Cutting height: steps 6
Blade engagement: Electric clutch
Blades: 3 pcs
Blade-tip speed: 18,500 fpm
Anti-scalp: wheels 3
Nose roller: Yes
Deck lifting system: Manual, hand operated
Powder-coated cutting deck: Yes
Spindle/mandrel type: Cast iron
Greasable mandrels: Yes
Deck Wash Port: Yes
Cutting height, min-max: 1.5-4 in

DIMENSIONS

Base machine, length: 75 in
Base machine, height: 40 in
Base machine, width: (chute down) 60 in
Base machine, width: (chute up) 50 in
Weight: 581 lbs
Tire size, front Width: 6 in
Tire size, front Diameter: 11 in
Tire size, front Diameter: wheel 5 in
